Husqvarna Viking Changeable Foot (open toe, Quilter's Guide, 1/4" Guide, Decorative)
Husqvarna Viking Changeable Feet
(For Interchangeable Dual Feed Foot Part #920219096)
Fits Groups 5 - 8 machines, not for Emerald 122, 118, 116, Eden Rose 250M, Tribute 140M, 145M)

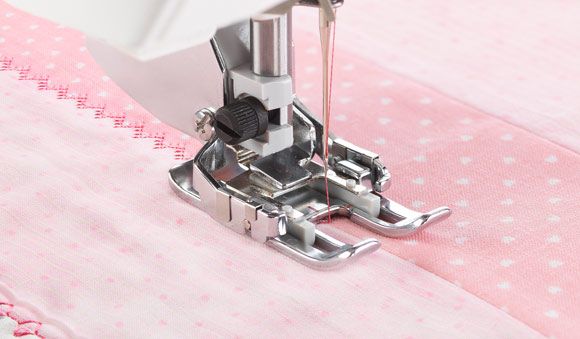

Changeable Open Toe Foot
Item #413237845

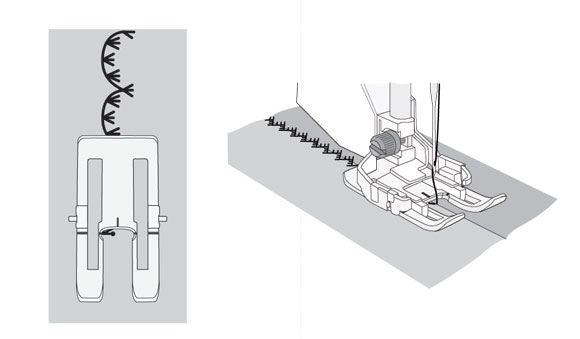

Use the Changeable Open Toe Foot when sewing Satin stitch applique, Taper stitches and Decorative stitches. The tunnel on the underside of the foot feeds smoothly and the open front gives greater visibility and a great overview of the stitches.
not for EMERALD™ 122, 118 and 116 machines.
Other information
Download New Stitches:
Click on the link below to download the new stitches. Use a file compression utility (WinZip or similar) to unzip the downloaded file. Place the unzipped files on a USB-stick. The USB-stick should contain four stitch files after a successful download.

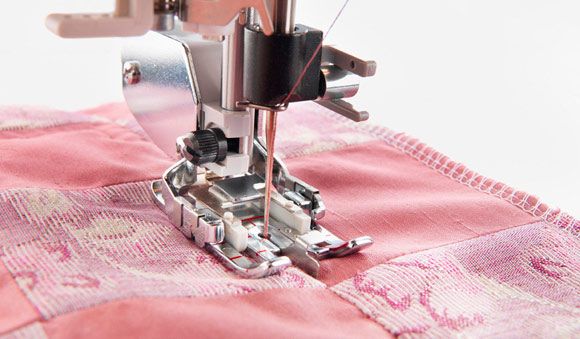

Changeable Quilter's Guide Foot
Item #413155545

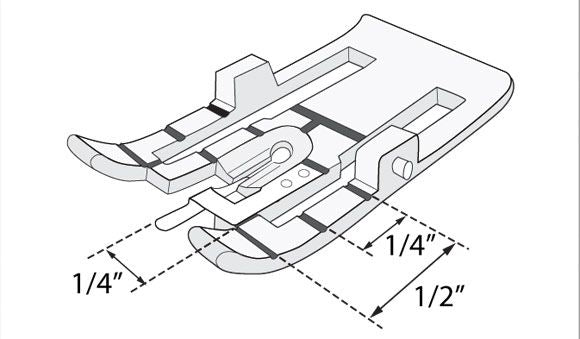

Use the Changeable Quilter’s Guide Foot when stitching in the ditch along a seam line. The foot has guidelines to make it easy to accurately turn corners for ¼ (6mm) or 1/8 (3mm) seams. The Dual Feed with Changeable Presser Feet is designed to feed layers of fabric and/or batting evenly. It is perfect for quilting, sewing velvet, some stretch fabrics, imitation leathers and fabrics which need accurate pattern matching.
Other information
1. Stitching in the ditch means stitching in the finished seam line.
2. Snap on the Changeable Quilter’s Guide Foot. Select the center needle straight stitch and adjust it up to a maximum stitch length of 6.
3. Place the fabric to be stitched under the presser foot aligning the guide in the center of the foot with the seam line.
4. To pivot ¼ (6mm) from the end: Select the Needle Up/Down to activate the needle down. Sew the seam. Stop sewing when the front line on the foot is even with the edge of the fabric. Raise the presser foot, pivot and continue sewing.
5. The Changeable Dual Feed Foot makes feeding several layers smooth and easy

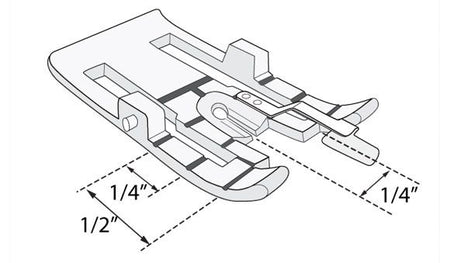

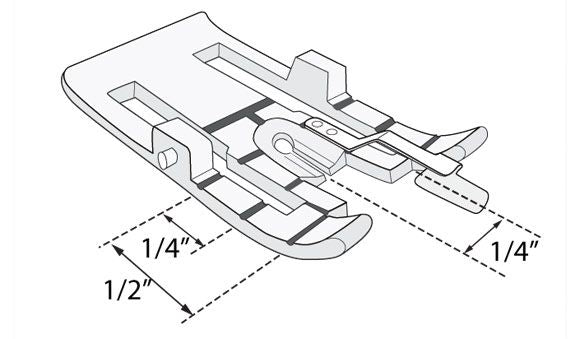

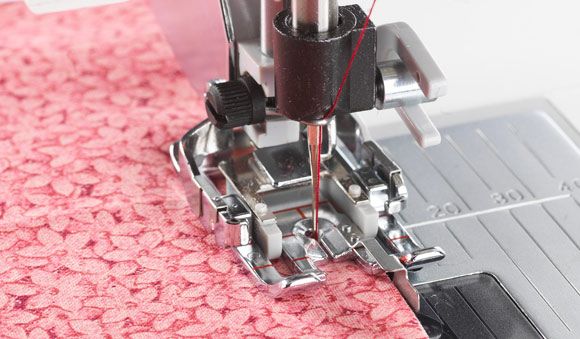

Changeable 1/4" Guide Foot
Item #413238345
The Interchangeable Dual Feed with Changeable Presser Feet is designed to feed layers of fabric and/or batting evenly. It is perfect for quilting, sewing velvet, some stretch fabrics, imitation leathers and fabrics which need accurate pattern matching. Use the Changeable ¼” Guide Foot for straight stitch and hand look quilt stitch. The guide will help you keep ¼” (6mm) distance.
Other information
1. Attach the Interchangeable Dual Feed to your machine:
a. Remove the presser foot ankle by unscrewing the ankle screw.
b. Place the Interchangeable Dual Feed onto your machine from the back, positioning the fork over the needle clamp screw. Screw the Interchangeable Dual Feed onto the presser foot bar with the presser foot ankle screw.
c. With presser foot bar in the up position, place the Changeable 1/4” Guide Foot under the Interchangeable Dual Feed.
2. Push the Changeable .” Guide Foot upwards so that it snaps into place.
Piecing:
3. Because this foot has a small opening to better form the stitches for piecing, you can only use the center needle position straight stitch or the hand look quilt stitch.

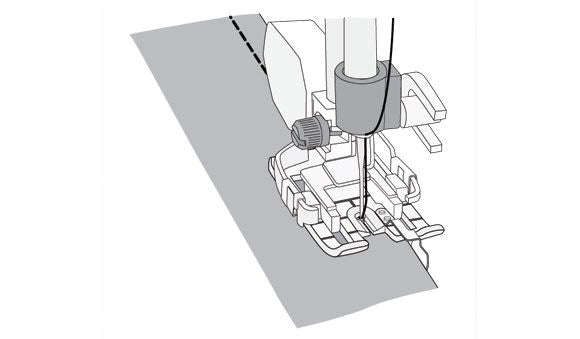

4. To begin sewing at the edge of the fabric, place your fabric under the foot, aligning the raw edges with the guide on the foot.
5. Sew the seam, keeping the edges aligned with the guide.
Quilting:
6. The red markings on the foot will help you to align the fabric at the start of your sewing, at corners and at the end of your fabric.
7. Sew with the guide riding in the pieced seam (ditch) of the quilt. When you come to a corner, stop when the .” red marking on the foot reaches the seam.
8. With the needle in the fabric, pivot and continue sewing.

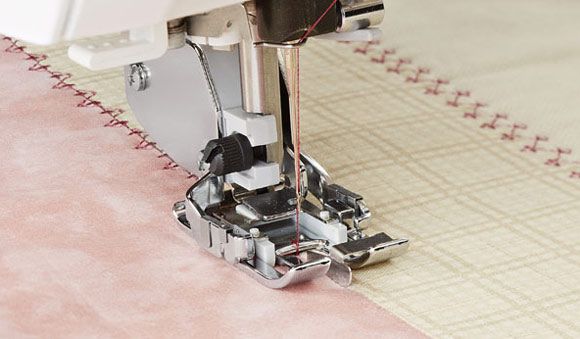

Changeable Decorative Foot
Item #413340845
The Interchangeable Dual Feed with Changeable Presser Feet is designed to feed layers of fabric and/or batting evenly. It is perfect for quilting, sewing velvet, most stretch fabrics, imitation leathers and fabrics which need accurate pattern matching.

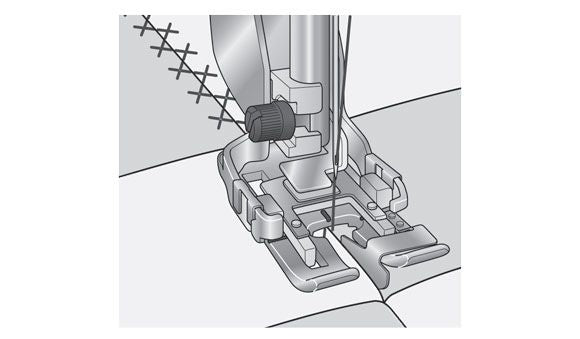

Use the Changeable Decorative Guide Foot when stitching in the ditch along a seam line sewing any decorative stitch. The metal guide in the center of the foot helps you when guiding your fabric.
Other information
1. Attach the Interchangeable Dual Feed to your machine:
a. Remove the presser foot ankle by unscrewing the ankle screw.
b. Place the Interchangeable Dual Feed (Foot) onto your machine from the back, positioning the fork over the needle clamp screw. Screw the Interchangeable Dual Feed (Foot) onto the presser foot bar with the presser foot ankle screw.
c. With presser foot bar in the up position, place the Changeable Decorative Guide Foot under the Interchangeable Dual Feed (Foot).
2. Push the Changeable Decorative Guide Foot upwards so that it snaps into place.
3. Select a decorative stich of your choice.
4. Place the fabric to be stitched under the presser foot aligning the guide in the center of the foot with the seam line. (Stitching in the ditch means stitching in the finished seam line.) Illustration.
5. Sew, keeping the guide aligned with the seam as you sew.
