Bernina Edgestitch Foot #10, #10C, or #10D
Edgestitch foot #10, #10C or #10D
The topstitching expert
- Excellent for topstitching edges, hems and pleats

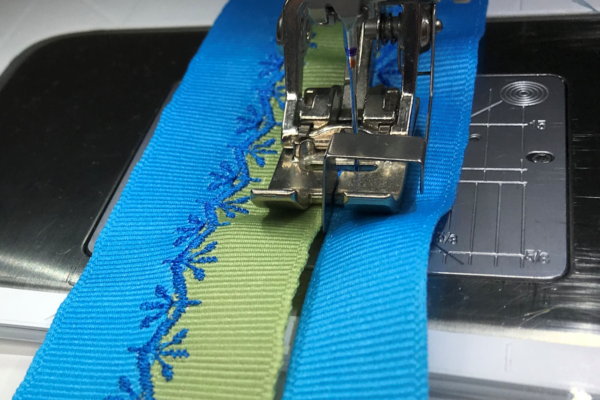

- Ideal for sewing on lace or ribbon
- For reinforcing edges
- The guide lets you sew perfect seams and hems running parallel to the edge
- For 5.5 mm and 9 mm machines
Edgestitch foot #10 is a practical help for sewing finished edges even and straight. Superbly suited to applying lace and trims, Edgestitch foot #10 is also ideal for topstitching edges, pleats and hems.
The guide blade in the center of the foot helps you sew seams and hems running perfectly parallel to the edge in next to no time.

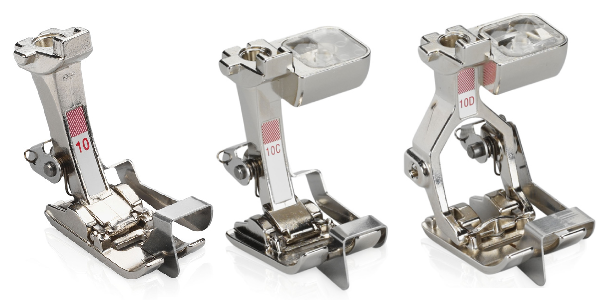

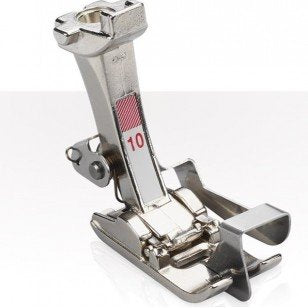

Edgetstich Foot #10 is for 5.5 mm machines, or when extra width is not needed.

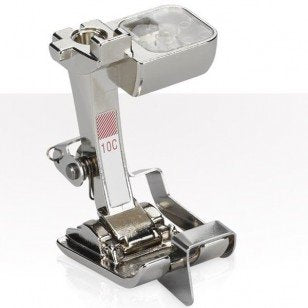

Edgestitch Foot #10C is for 9 mm machines

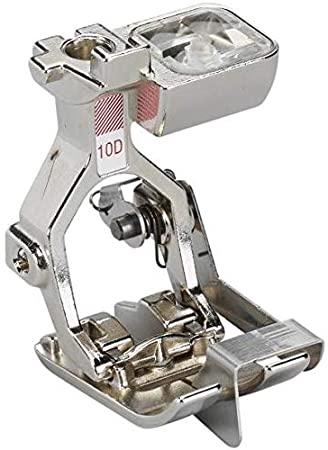

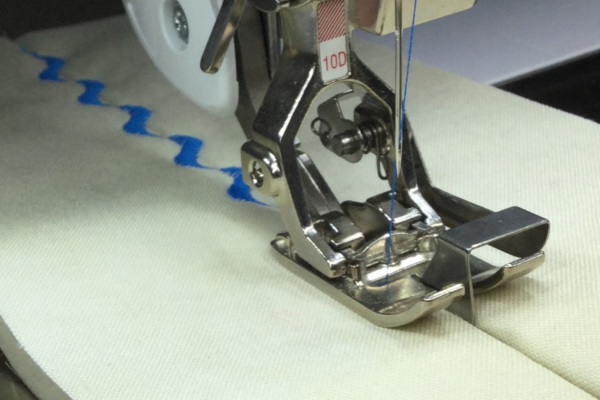

Edgestitch Foot #10D is for Dual Feed machines
Presser Feet: • are Swiss-engineered for precision sewing of specific functions • are one-piece metal feet, making them strong and durable • are easy to change with one hand, requiring no special tools • have a white shank, making it easier to see the eye of the needle, resulting in easier threading • are, in some cases, modeled after commercial feet used in factories to increase speed and production with professional looking results • do the job intended in relation to all types of sewing (garment making, quilting, crafting, etc.) •
Understanding the Numbers/Letters BERNINA presser feet are numbered and may have one or two additional versions with a letter that follows the number, such as Edgestitch Foot #10C or Jeans Foot #8D.
No Letter—The number without a letter refers to a foot engineered to be used with BERNINA models that have a CB Hook and a maximum stitch width of 5.5mm. These feet may also be compatible with models that have a 9mm width when a 9mm width is not applicable, such as when making pintucks with feet #30, 31, 32, or 33.
The Letter “C”—When a foot number is followed by a C, it indicates a version of the foot made for models that have rotary hook systems and a maximum stitch width of 9mm. The “C” stands for coded and refers to the sensor on the foot that works with the electronics of the machine to engage the wider stitch width (see page 8 for more information on sensors). The sole of the “C” foot is usually larger to fit the wider feed dogs of the rotary hook machines. Exceptions: Overlock Foot #2/2A: 2A is larger to fit the wider feed dog but does not have a sensor for a wider stitch because the overlock stitches are not used at wide widths. Extra Wide Gathering Foot #16C: 16C is larger to fit the wider feed dog but does not have a sensor for a wider stitch width.
The Letter “D”—The feet that have a number followed by a D are designed to work with the Dual Feed feature. After attaching the foot, the dual feed mechanism is positioned in the cutout on the back of the foot, engaging the BERNINA Dual Feed system. It is recommended that the D-Feet are used only when engaging the BERNINA Dual Feed feature.
